EEGLABとEMGデータ

% Start EEGLAB
addpath('/path/to/eeglab');
eeglab nogui;

% Define BIDS root directory
bids_root = '/path/to/nm000104';
subject_id = 'sub-03734552';
session_id = 'ses-1620588853';

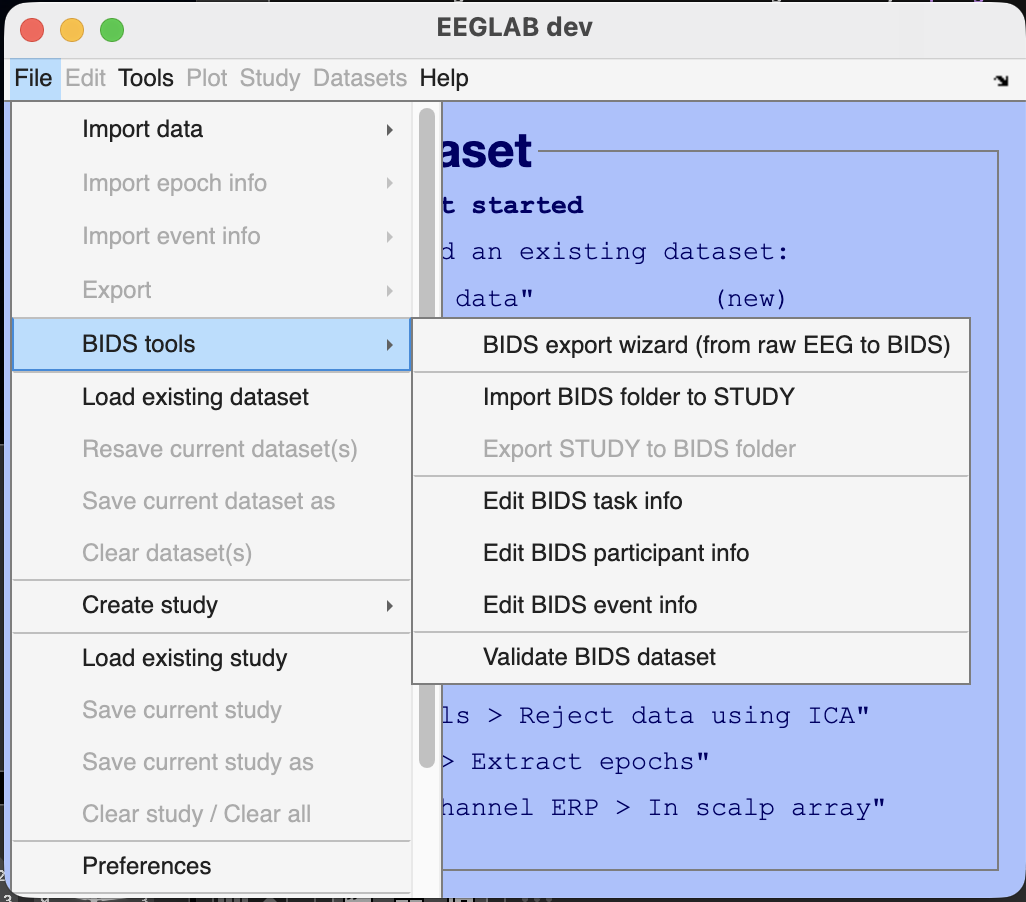

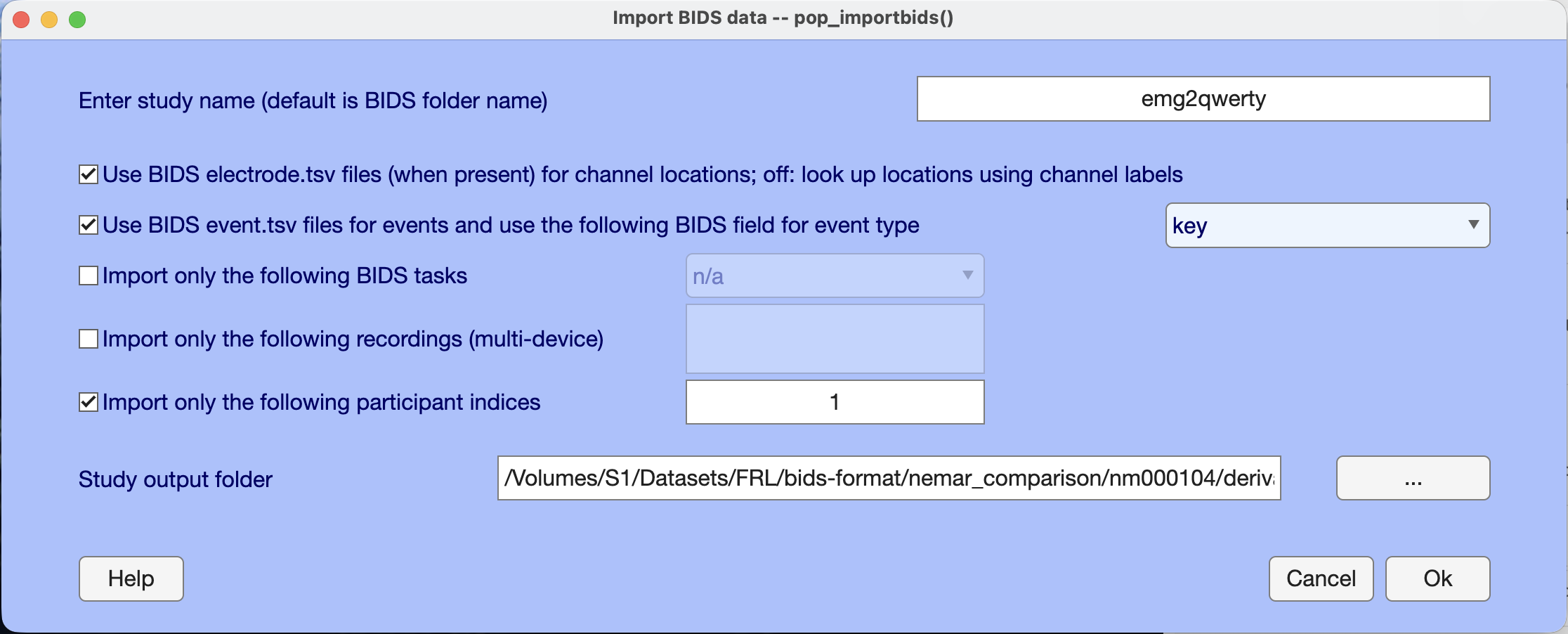

% Import using pop_importbids
[STUDY, ALLEEG] = pop_importbids(bids_root, ...
    'bidstask', 'typing', ...
    'subjects', subject_id(5:end));  % Remove 'sub-' prefix

EEG = ALLEEG(1);

% Load BDF file
emg_file = fullfile(bids_root, subject_id, session_id, 'emg', ...
    sprintf('%s_%s_task-typing_emg.bdf', subject_id, session_id));
EEG = pop_biosig(emg_file);

% Load events from TSV file
events_file = fullfile(bids_root, subject_id, session_id, 'emg', ...
    sprintf('%s_%s_task-typing_events.tsv', subject_id, session_id));
events_table = readtable(events_file, 'FileType', 'text', 'Delimiter', '\t');

% Convert to EEGLAB event structure
for i = 1:height(events_table)
    EEG.event(i).latency = events_table.onset(i) * EEG.srate;
    EEG.event(i).type = char(events_table.value(i));
    if ~strcmp(events_table.key{i}, 'n/a')
        EEG.event(i).key = char(events_table.key(i));
    end
end

% Set data type
EEG.etc.datatype = 'emg';
EEG = eeg_checkset(EEG);

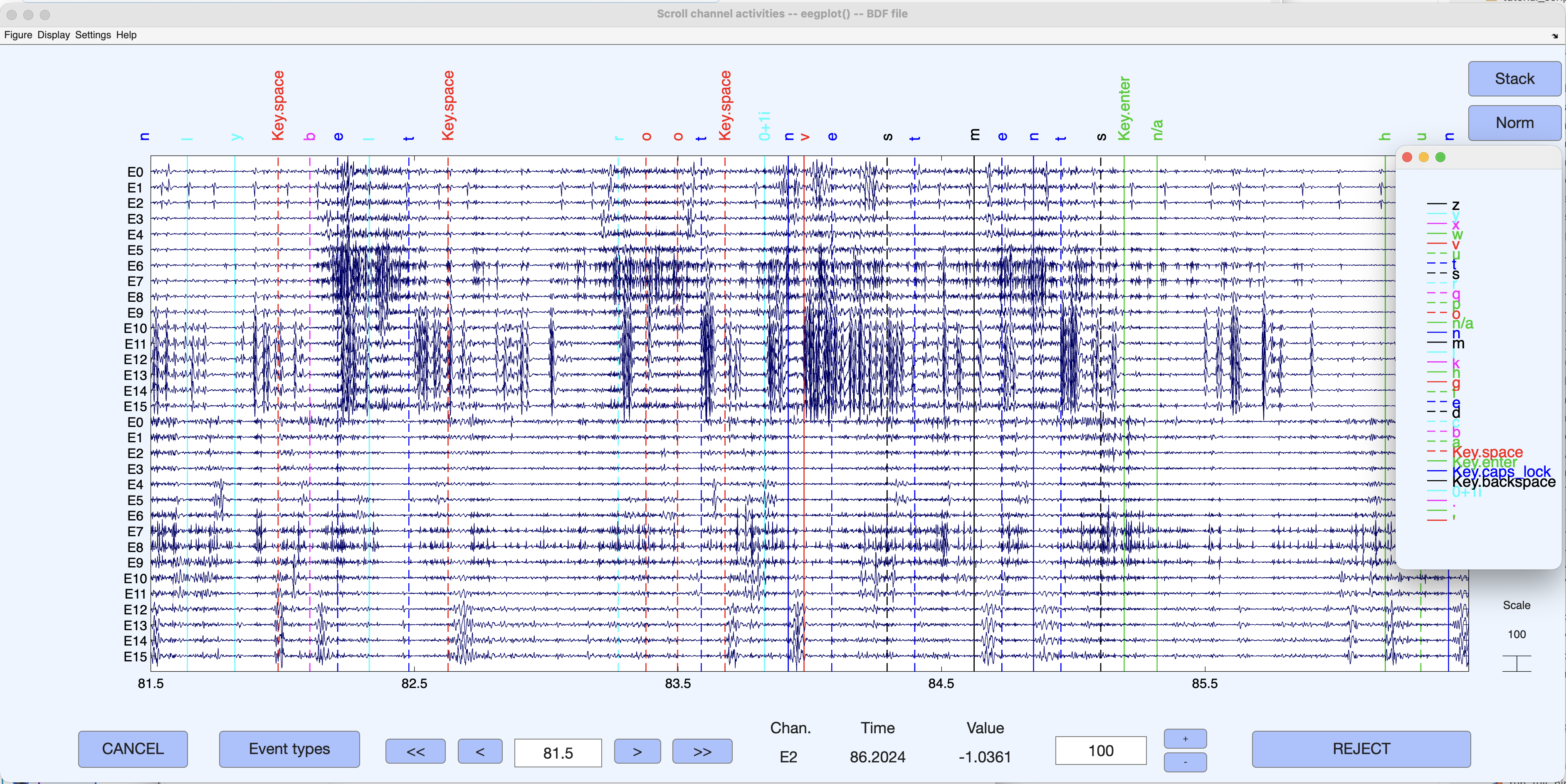

% Use EEGLAB menu: Plot > Channel data (scroll)
% Or from command line:
pop_eegplot(EEG, 1, 1, 1);

% View events: Edit > Event values
% Or list event types from command line:
unique_events = unique({EEG.event.type});
fprintf('Found %d event types\n', length(unique_events));
fprintf('Total events: %d\n', length(EEG.event));

% Count specific keystroke types
keystroke_idx = find(contains({EEG.event.type}, 'keystroke_'));
fprintf('Keystroke events: %d\n', length(keystroke_idx));

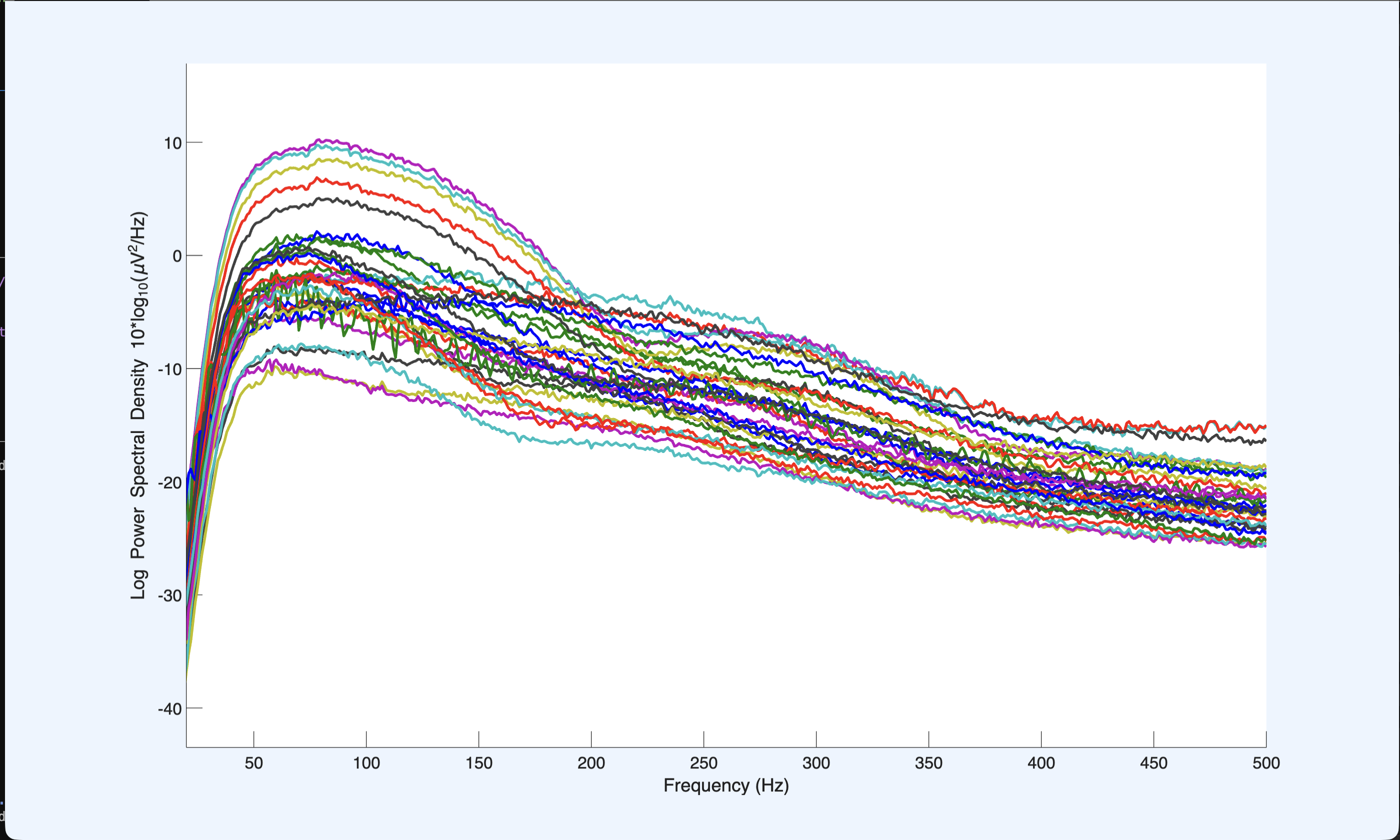

% Use EEGLAB menu: Plot > Channel spectra and maps
% Or from command line:
% Note: 'freq', [] disables topoplots which are NOT meaningful for EMG
figure; pop_spectopo(EEG, 1, [0 EEG.xmax*1000], 'EEG', ...
    'freqrange', [0 500], ...
    'freq', []);

% Apply bandpass filter for EMG
lowcut = 20;   % Hz - removes slow drifts
highcut = 250; % Hz - removes high-frequency noise

EEG = pop_eegfiltnew(EEG, 'locutoff', lowcut, 'hicutoff', highcut);

% Calculate variance for each channel
channel_vars = var(EEG.data, 0, 2);
mean_var = mean(channel_vars);
std_var = std(channel_vars);

% Flag channels outside 3 standard deviations
bad_chan_idx = find(channel_vars < mean_var - 3*std_var | ...
                    channel_vars > mean_var + 3*std_var);

% From EEGLAB menu: File > Manage EEGLAB extensions
% Search for 'clean_rawdata' and install

% Or from command line:
plugin_askinstall('clean_rawdata');

% Apply clean_rawdata with ASR
% Parameters tuned for EMG data (more conservative than EEG defaults)
EEG = clean_rawdata(EEG, ...
    'FlatlineCriterion', 5, ...        % Remove channels flat for >5 seconds
    'ChannelCriterion', 0.8, ...       % Remove channels with <0.8 correlation to robust estimate
    'LineNoiseCriterion', 4, ...       % Line noise threshold
    'Highpass', [0.25 0.75], ...       % Already filtered, set to preserve
    'BurstCriterion', 20, ...          % ASR burst criterion (higher = more aggressive)
    'WindowCriterion', 0.25, ...       % Remove windows with >25% bad channels
    'BurstRejection', 'on', ...        % Enable ASR burst correction
    'Distance', 'Euclidean', ...       % Distance metric
    'WindowCriterionTolerances', [-Inf 7]); % Window tolerance

EEG = eeg_checkset(EEG);

% Mark bad channels
bad_channels = [5, 12, 23];  % Example indices

% Remove bad channels
EEG = pop_select(EEG, 'nochannel', bad_channels);

% Or interpolate (if you have spatial information)
% EEG = pop_interp(EEG, bad_channels, 'spherical');

% Compute RMS per channel
channel_rms = sqrt(mean(EEG.data.^2, 2));

% Identify outlier sessions (>3 SD from mean)
if mean(channel_rms) > subject_mean_rms + 3*subject_std_rms
    fprintf('WARNING: This session may be an outlier (high RMS)\n');
    fprintf('Consider excluding from group analysis\n');
end

% Check percentage of extreme values
pct_extreme = 100 * sum(abs(EEG.data(:)) > 1000) / numel(EEG.data);
if pct_extreme > 1
    fprintf('WARNING: %.2f%% of samples exceed 1000 µV\n', pct_extreme);
end

% Step 1: Rectify the filtered EMG
EEG.data = abs(EEG.data);

% Step 2: Low-pass filter to create envelope
envelope_cutoff = 20;  % Hz - 20 Hz provides faster response for typing tasks
EEG = pop_eegfiltnew(EEG, 'hicutoff', envelope_cutoff);

% Clip any negative values from zero-phase filtering
EEG.data(EEG.data < 0) = 0;

% Mark as envelope data
EEG.etc.is_envelope = true;
EEG.etc.envelope_cutoff = envelope_cutoff;

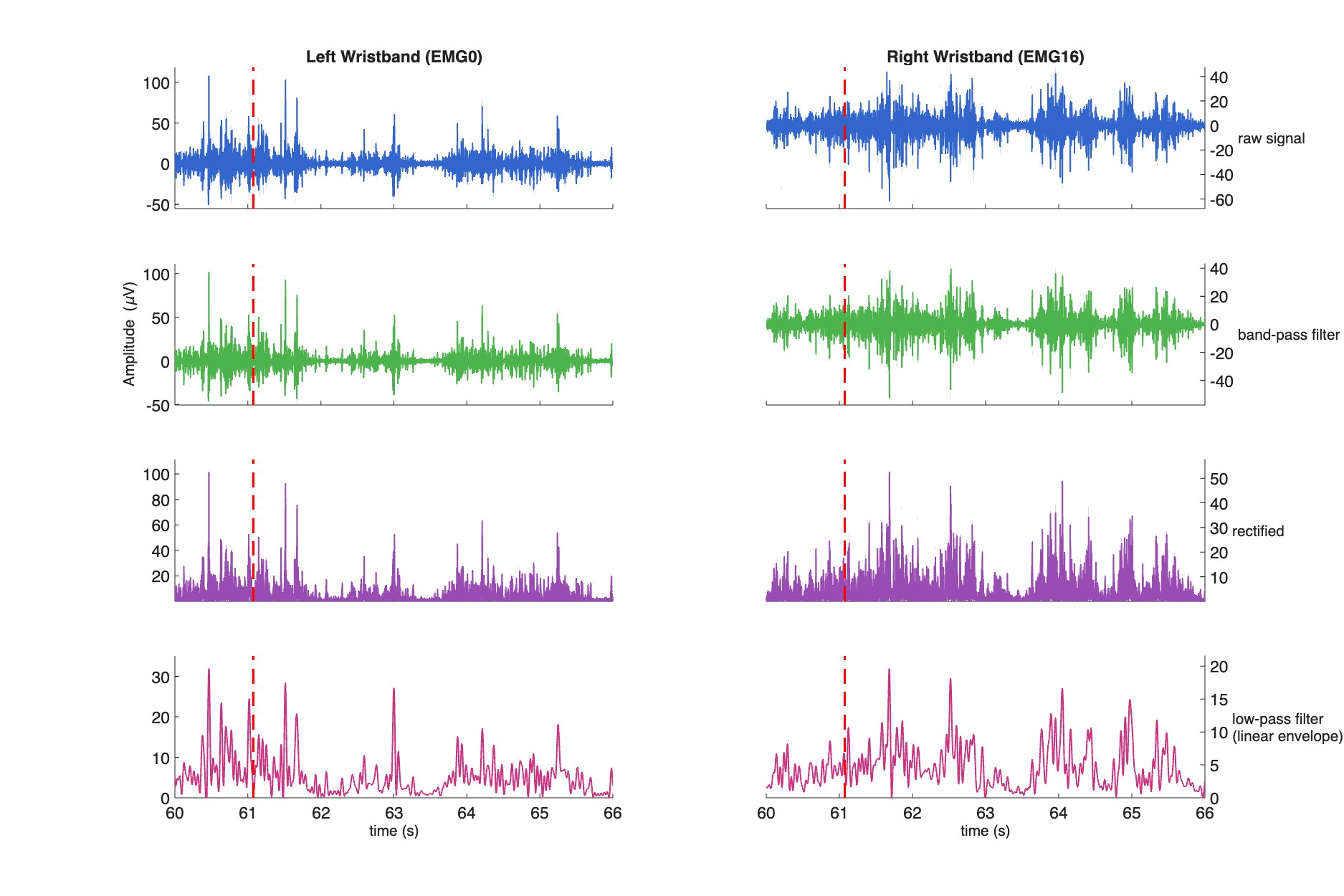

%% Visualize the envelope computation process
figure('Position', [100, 100, 1200, 800]);

% Select a time window with keystroke events (6 seconds)
time_window = [60, 66];
samples_window = round(time_window * EEG.srate);
time_vec = (samples_window(1):samples_window(2)-1) / EEG.srate;

% Select two representative channels (one left, one right wristband)
channels_to_plot = [1, 17];  % EMG0 (left), EMG16 (right)
channel_names = {'Left Wristband (EMG0)', 'Right Wristband (EMG16)'};

% Colors for each stage
colors = {[0.2 0.4 0.8], [0.3 0.7 0.3], [0.6 0.3 0.7], [0.8 0.2 0.5]};
stage_labels = {'raw signal', 'band-pass filter', 'rectified', 'low-pass filter (envelope)'};

for col = 1:length(channels_to_plot)
    chan_idx = channels_to_plot(col);

    % Get data for each stage (assuming EEG_raw, EEG_filtered, EEG are available)
    data_raw = EEG_raw.data(chan_idx, samples_window(1)+1:samples_window(2));
    data_bandpass = EEG_filtered.data(chan_idx, samples_window(1)+1:samples_window(2));
    data_rectified = abs(data_bandpass);
    data_envelope = EEG.data(chan_idx, samples_window(1)+1:samples_window(2));

    all_data = {data_raw, data_bandpass, data_rectified, data_envelope};

    for row = 1:4
        subplot(4, 2, (row-1)*2 + col);
        plot(time_vec, all_data{row}, 'Color', colors{row}, 'LineWidth', 1);

        if row == 1, title(channel_names{col}); end
        if row == 4, xlabel('Time (s)'); end
        if col == 1, ylabel(stage_labels{row}); end
        grid on;
    end
end
sgtitle('Linear Envelope Computation Process');

% Define epoch window
epoch_start = -0.5;  % seconds before keystroke
epoch_end = 1.0;     % seconds after keystroke

% Find keystroke events
keystroke_types = {};
for i = 1:length(EEG.event)
    if contains(EEG.event(i).type, 'keystroke_')
        keystroke_types{end+1} = EEG.event(i).type;
    end
end
unique_keystrokes = unique(keystroke_types);

% Extract epochs
EEG = pop_epoch(EEG, unique_keystrokes, [epoch_start epoch_end], 'epochinfo', 'yes');

% Define baseline window (avoid 100ms immediately before keystroke)
baseline_window = [-0.5, -0.1];  % seconds

% Remove baseline
EEG = pop_rmbase(EEG, baseline_window * 1000);  % Convert to ms

% Identify channel groups
% NOTE: Verified empirically - adjust based on your hardware setup
left_wristband = 1:16;    % LEFT hand (EMG0-EMG15)
right_wristband = 17:32;  % RIGHT hand (EMG16-EMG31)

% NOTE: EEG should contain envelope data from step 2b!
% Extract epochs for specific keys
EEG_a = pop_epoch(EEG, {'keystroke_a'}, [epoch_start epoch_end]);
EEG_a = pop_rmbase(EEG_a, baseline_window * 1000);

EEG_k = pop_epoch(EEG, {'keystroke_k'}, [epoch_start epoch_end]);
EEG_k = pop_rmbase(EEG_k, baseline_window * 1000);

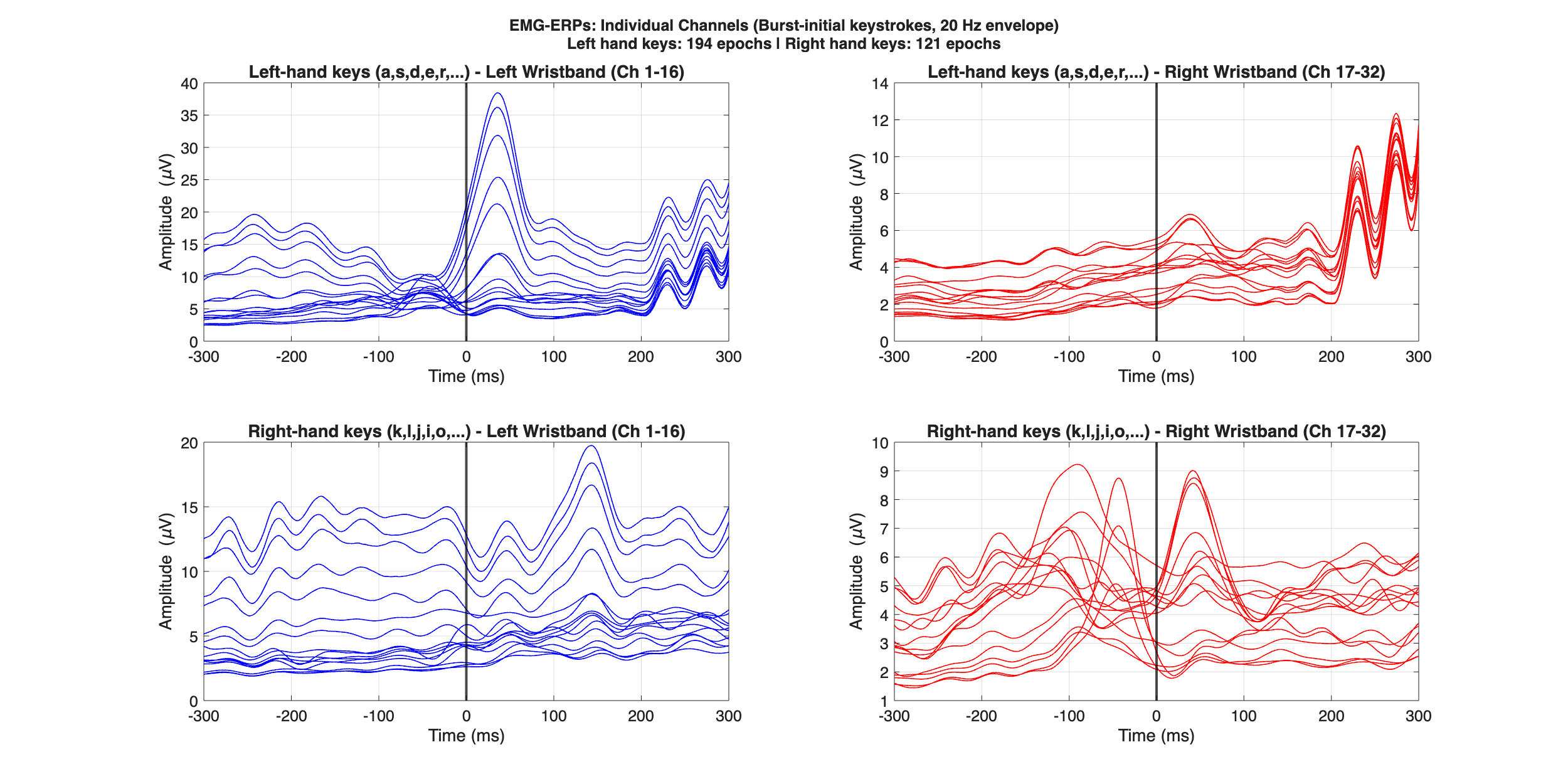

% Compute ERPs from envelope (average across trials)
ERP_a_left = mean(EEG_a.data(left_wristband, :, :), 3);
ERP_k_right = mean(EEG_k.data(right_wristband, :, :), 3);

% Use EEGLAB menu: Plot > Channel ERPs > In rectangular array
% Or from command line:
figure; pop_plottopo(EEG_a, [1:16], 'EMG-ERP for key "a" (left channels)', ...
    0, 'ydir', 1);
